UBC hemp building a showcase for low carbon

Designed by students, Third Space Commons is made out of hempcrete
Monday, April 24, 2023

UBC students are enjoying a vibrant new teaching and learning space that is one of Canada’s first institutional spaces designed to be near-zero embodied carbon. It’s also the first such building designed by students.

Known as the Third Space Commons, the new institutional space is made out of hempcrete that is one of the first ‘carbon-minimal’ institutional buildings in Canada. It will serve as a collaborative work space and living laboratory for students, industry partners and researchers to investigate zero emission, regenerative and climate-resilient design.

The bright and airy 2,400-sq.-ft. wood frame building emitted nearly-zero carbon emissions during construction, a feat that many view to be the final frontier facing carbon emissions reductions across the global building industry.

Virtually every material, construction technique and design element of the project was chosen for its ability to lower or even capture carbon emissions.

Third Quadrant Design, a 60-member student team, managed the project from conception through to completion, assembling a group of supportive industry partners who provide mentorship and guidance.

“We sought to create an addition to campus that encourages interdisciplinary action on climate change, both as an example and through its eventual use. As a sustainability living lab and flexible collaboration space, we hope Third Space Commons will inspire future building industry leaders and cultivate innovation,” says UBC architecture student Katie Theall, the project’s architecture lead.

The thermal insulation is made of hempcrete – a mixture of hemp fibres and lime which captures carbon from the atmosphere as it sets. It eventually turns into a concrete-like material but one that’s made primarily out of a renewable, carbon-sequestering natural fibre.

Real concrete, which accounts for a significant proportion of building construction-related emission in British Columbia and around the world, is virtually absent on the project. The foundation of the building is made of reusable steel piles. The team also choose light wood framing rather than engineered wood for the majority of the building’s structure. The latter is manufactured using glues derived from fossil fuels, which makes it more carbon intensive.

“Construction waste is an issue we wanted to tackle. We sourced our materials sustainably, prioritizing the adaptive reuse of materials from other construction sites in Vancouver where possible. Our windows, solar panels, appliances, and much of our lumber was on its way to a landfill,” says construction lead and civil engineering student Peter Ehrlich.

The team worked hard to account for the carbon impact of every material element of the project  – perhaps the first in B.C. and possibly in Canada to have done so, says Dr. Adam Rysanek, an assistant professor of architecture and landscape architecture who advises the team.

“Typical emissions estimates in the construction industry consider only about 40-60 per cent of a building’s total materials due to a lack of established standards for measuring the rest,” says Dr. Rysanek. “The Third Quadrant Design team opted to painstakingly account for nearly every material that found its way into the project, including its electrical, heating and ventilation systems.”

Third Quadrant Design is a women-founded team that continues to be 60 per cent women since its first year. Currently it includes students from different disciplines: engineering, architecture, arts and business. Members worked alongside engineering, building and architecture contractors to implement their vision. They received funding support from the UBC faculty of applied science, the Sauder School of Business and the UBC president’s office.

The team hopes the new space inspires construction of future sustainable buildings in B.C. and beyond, says Dr. Rysanek.

“With Third Space Commons we now have a prototype for how we can get to truly net-zero carbon in building design, particularly for low-rise homes, schools and multifamily dwellings,” says Dr. Rysanek. “More than anything, the team is demonstrating how sustainability and regenerative design can lead to buildings that are both carbon-minimal and beautiful.”

In recognition of this meticulous approach to carbon accounting, the team recently received the inaugural B.C. Embodied Carbon Award for Small Building Construction by the BC Carbon Leadership Forum. The team demonstrated how their project will be responsible for up to 80 per cent less carbon emissions than had it been constructed using traditional techniques and materials.

Third Space Commons is located at 6363 Biological Sciences Road, just behind the Earth Sciences Building on the UBC campus.

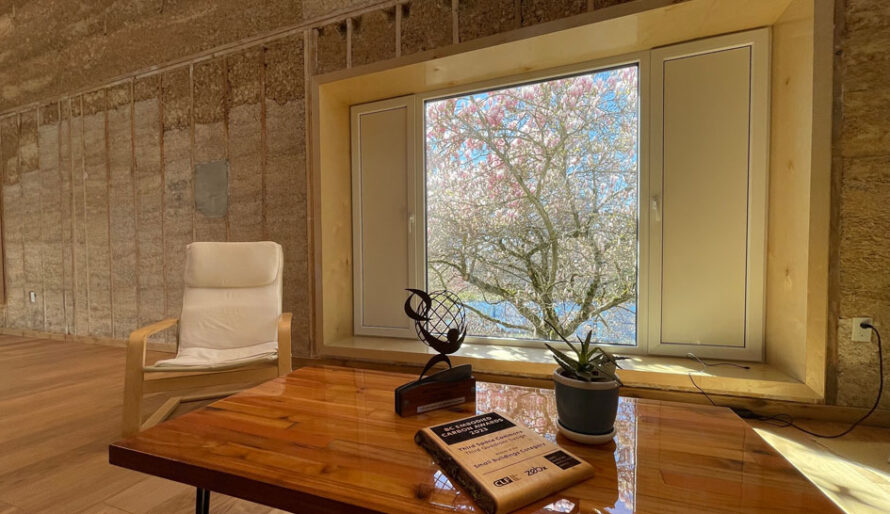

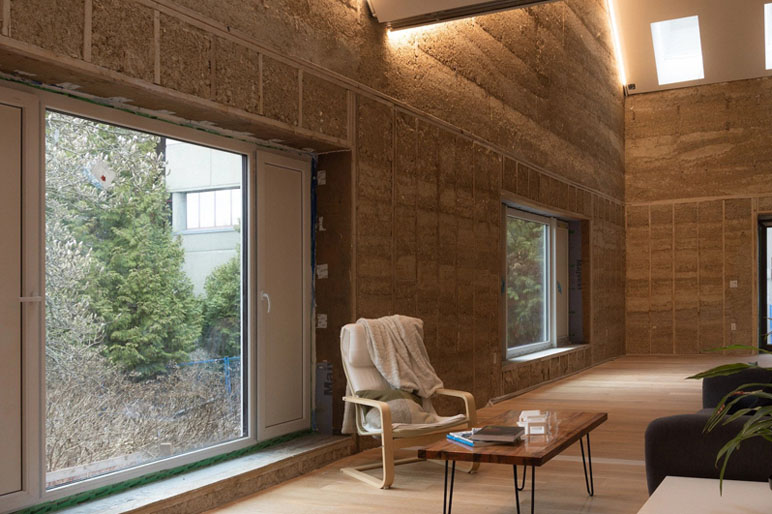

photos: UBC Faculty of Applied Science
